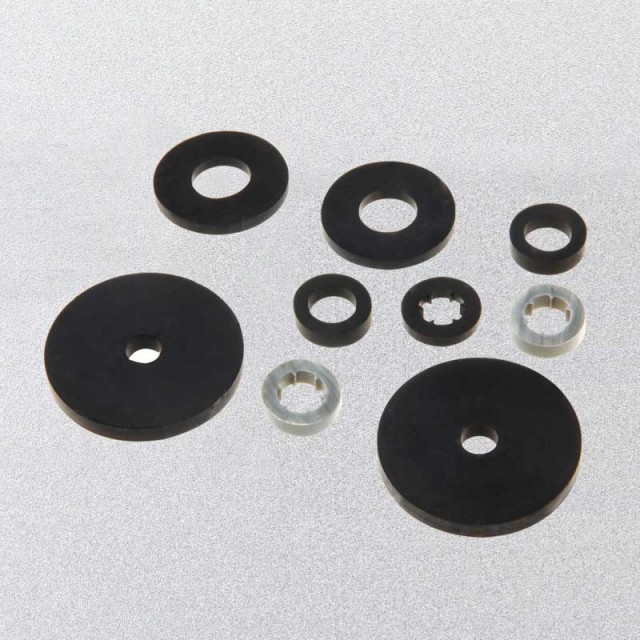

Neoprene (CR)/ EPDM Washer Series
Cutting Washer Rubber
CR washer - used in construction, machinery, home appliances, solar energy, automobiles...etc. Seals that can effectively waterproof, loosen and shock-absorb.
Specification
No. of Teeth | Screw Size | O.D. (Outside Diameter) | I.D. (Inside Diameter) | I.D. with Teeth |
---|---|---|---|---|
4 | 10# | 8.5 | 4.9 | 4.3 |
6 | 12# | 10.5 | 5.8 | 4.6 |
6 | 14# | 11.2 | 6.5 | 5.4 |
4 | M8 | 14 | 8.8 | 7.5 |
4 | M10 | 16 | 10.5 | 9.0 |
![](/storage/images/products/cr-washer/cr-dim.jpg)
